Features
- 2” diameter rollers
- Drive roll is convex and idler roll is concave to center the jar on the rollers
- Roll surfaces are conductive Neoprene rubber
- Welded steel frame with vibration absorbing footpads
- Three position roller adjustments
- Drive arrangement provides a speed range of 20 to 300 RPM
- Standard electrical voltage of 110 volts, 1PH, 50/60 HZ.
Options
- Explosion proof motor
- NEMA 7-9 controls
- 230/460, 3PH, 60HZ motors
- Revolution counter
- Cycle timer
- Sound deadening enclosures
- Roll guard cover on single tier units
*Note: Roller speeds may differ with explosion proof models.
Model Specifications
Model 755
- Totally enclosed DC drive motors permit solid-state control of roll speed. Machines have a speed range of between 20 and 300 RPM
- Motor is 1/4HP, single phase TEFC, 60/50 cycle, 115/110V and furnished with standard plug
- Explosion-proof model has constant a speed of 290 RPM.

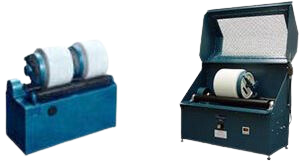

Model 764
- Totally enclosed DC drive motor permit solid-state control of roll speed. Machines have speed range of between 20 and 300 RPM
- Motor is 1/4 HP, 60/50 cycle, 115/110V, single phase, furnished with standard plug, 220V available
- Explosion-proof model has a speed range of 160/320 RPM
Model 784
- Totally enclosed DC drive motors permit solid-state control of roll speed. Machines have a speed range of between 20 and 300 RPM
- Designed with sheet metal pans under each tier of rollers. Pans contain jar contents should spillage or breakage occur
- Motor are 60/50 cycle, 115/110V, single phase, 220V available
- Explosion-proof has a speed range of 160-320 RPM
