Long Roll Jar Mills
Features
- Space saving design
- Single and multi-tiered models
- 36, 48 or 72-inch-long rollers
- Totally enclosed DC drive motor
- Roller speed range of 50-300 RPM
- Pillow block roller bearings
- 2-1/2” diameter Neoprene rubber rollers
- Three position lateral adjustment idler roller
Ball Mill Drive Options
- Revolution counters
- Automatic timers
- Motor controls
- Jar positioners
- Sound-proof enclosures
- Roll guard covers
- Explosion proof motors
*Note that explosion proof models have a constant speed of 290 RPM

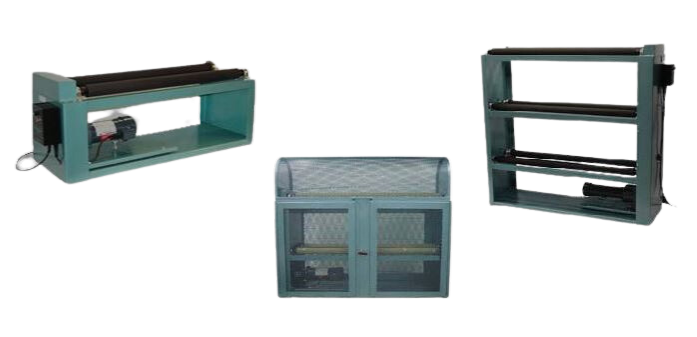

Model 801
Model 802 With Safety Enclosure
Model 803
Models
| Model Number | Number Of Tiers | Roll Length (Inches) | Overall Length (Inches) | Overall Width (Inches) | Overall Height (Inches) | Motor HP | Loading Max Weight Per Tier (lbs.) | Approximate Shipping Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|
| 801CVM | 1 | 36 | 44-3/4 | 16-1/2 | 20-1/8 | 1/2 | 240 | 300 |
| 801DVM | 1 | 48 | 56-3/4 | 16-1/2 | 20-1/8 | 1/2 | 240 | 345 |
| 801FV | 1 | 72 | 80-3/4 | 16-1/2 | 20-1/8 | 3/4 | 340 | 385 |
| 802CVM | 2 | 36 | 44/3/4 | 16-1/2 | 40 | 3/4 | 240 | 400 |
| 802DVM | 2 | 48 | 56-3/4 | 16-1/2 | 40 | 3/4 | 240 | 460 |
| 802FVM | 2 | 72 | 80-3/4 | 16-1/2 | 40 | 1 | 260 | 610 |
| 803CVM | 3 | 36 | 44-3/4 | 16-1/2 | 60-1/2 | 1 | 240 | 600 |
| 803DVM | 3 | 48 | 56-3/4 | 16-1/2 | 60-1/2 | 1 | 240 | 630 |
| 803FVM | 3 | 72 | 80-3/4 | 16-1/2 | 60-1/2 | 1 1/2 | 280 | 855 |
