Cone Tumble Dryers
With a smooth internal finish, complete discharge and elimination of cross batch contamination are realized. Our cone tumble dryers can be designed for up to 500º F jacket temperatures and high vacuum. For superior drying, mixing and ease of cleaning the Orbis Machinery cone tumble dryer is the dryer of choice.
Process
Tumble drying of materials is accomplished by heating the walls of a jacketed, slow rotating double cone shaped vessel while applying vacuum. By applying vacuum, the boiling point of the liquid component(s) is lowered, while constant particle contact with the vessel walls provides uniform drying action. Revolving dryers rotate at low speeds (3 to 12 RPM, depending on the capacity of the dryer).
The heating jackets can be supplied for operation at 100° to 500° F. As a standard, all our hot oil or steam jackets include high temperature insulation covered by a watertight insulation shroud. Heating of the jacket is commonly accomplished using hot oil, but other heating sources such as steam or electric blankets, may also be used. Using oil as the heating medium, allows for faster cooling of the product after the material has been dried, for faster and safer unloading and handling.
Design
Two cones are welded to a cylindrical center section providing a gentle, low shear, tumble action of the product. Our cone tumble dryer design results in a high degree of particle mobility without the use of internal baffles (45° and 60° cones are available). Cone tumble dryers have been proven in a wide variety of industries, offering greater overall volume and high efficiency.
Options
Orbis offers a wide variety of options. Each machine is tailored to your specifications and applications. Our dryers handle a variety of material densities and are easily adaptable to meet standard material handling systems. Whichever your dryer requirements are, we have a solution to fit your process.
Standard Features
- Standard Designs for Material Densities up to 250 lbs. Cu. ft.
- 0.5 to 500 Cubic Foot Working Capacities
- 304 or 316 stainless steel or Carbon Steel construction

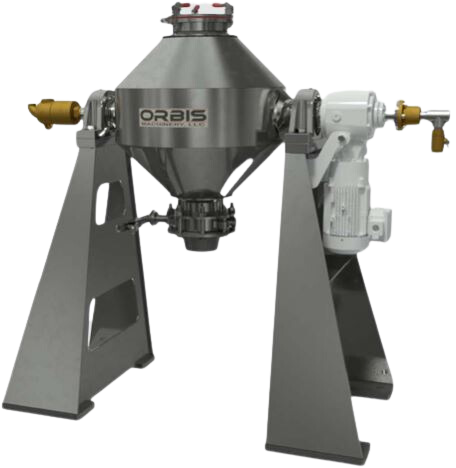

![Cone Tumble Dryer Orbis Machinery LLC Cone Tumble Dryer](https://www.orbismachinery.com/wp-content/uploads/2023/03/Cone-Tumble-Dryer.png)
Design Options
- Operator/Control Panels
- Pneumatic Valve Operation and Interlocks
- Sampling
- Internal and external finishes ranging from Mill to Mirror
- Various vessel interior coatings
- Containment systems
- Indexing Systems
- Load Cells
- Metallurgy
- Hastelloy C276 or C22
- Inconel
- Clean In Place
- Drum Loading System to accommodate any Drum Size and weight
- Pneumatically Operated Drum Roller Tray Lift Assembly, Pre-Wired with Safety Interlocks
- Vibrators for Poor Flowing Materials
Models
Model # | Working Volume (65% T) (Cu.Ft.) | Total Volume (Cu.Ft.) | Diameter (CB, in) | Jacket Surface Area (Sq. Ft.) | Rotational Speed (RPM) | HP (60 lbs/cu ft) | Hatch Dia. (in.) | Disch Dia. (in.) |
---|---|---|---|---|---|---|---|---|
CTD025-11 | 0.25 | 0.39 | 11 | 2.1 | 12 | 1/4 | 4 | 4 |
CTD05-14 | 0.5 | 0.77 | 14 | 3.4 | 10 | 1/4 | 4 | 4 |
CTD1-17 | 1 | 1.54 | 17 | 5.5 | 8 | 1/4 | 8 | 6 |
CTD3-25 | 3 | 4.66 | 25 | 12.8 | 7 | 1/4 | 8 | 6 |
CTD6-31 | 6 | 9.26 | 31 | 20.9 | 7 | 1/2 | 8 | 6 |
CTD10-37 | 10 | 15.34 | 37 | 29.2 | 6 | 3/4 | 10 | 8 |
CTD15-43 | 15 | 23.14 | 43 | 38.2 | 6 | 3/4 | 14 | 8 |
CTD20-47 | 20 | 30.82 | 47 | 46.4 | 5 | 1 | 16 | 8 |
CTD30-53 | 30 | 46.25 | 53 | 61.5 | 5 | 1 1/2 | 16 | 8 |
CTD40-59 | 40 | 61.62 | 59 | 75.3 | 4 | 2 | 16 | 8 |
CTD50-63 | 50 | 76.96 | 63 | 87.5 | 4 | 2 | 16 | 10 |
CTD75-73 | 75 | 115.47 | 73 | 115.8 | 4 | 3 | 16 | 10 |
CTD100-80 | 100 | 153.85 | 80 | 140.5 | 4 | 5 | 16 | 12 |
CTD125-86 | 125 | 192.44 | 86 | 163.2 | 3 | 5 | 18 | 12 |
CTD150-92 | 150 | 230.89 | 92 | 184.9 | 3 | 5 | 18 | 12 |
CTD200-101 | 200 | 308.53 | 101 | 225.2 | 3 | 7 1/2 | 18 | 12 |
CTD250-109 | 250 | 384.63 | 109 | 261.7 | 3 | 10 | 18 | 12 |
CTD300-115 | 300 | 462.77 | 115 | 296.4 | 3 | 15 | 18 | 12 |
CTD350-121 | 350 | 538.39 | 121 | 326.4 | 3 | 15 | 24 | 12 |
CTD400-127 | 400 | 616.88 | 127 | 357.2 | 3 | 20 | 24 | 12 |
