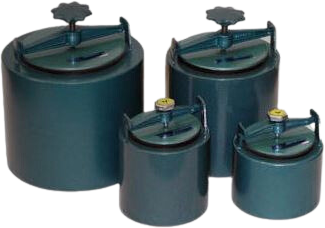

Milling Jar
Roalox Alumina-Fortified Grinding Jars
These ceramic jar bodies have been formulated to provide about 4 times the wear rate of our competitor’s porcelain jars. Lower silica content cuts silica contamination by more than half. High-strength, impact-resistant composition minimizes chipping and breakage.
Features
- Positive lid locking bar and hand well for quick, easy opening and closing
- Precision ground cover and gasket seat assure leak-proof fit
- Wide mouths for fast emptying, cleaning, loading
- Gaskets are oil, solvent and chemical-resistant Neoprene rubber
- Inside surfaces are unglazed
High Alumina Grinding Jars
Features
- Same design features as Roalox Mill Jars
- Ultra-high fired ceramic body composed primarily of high-grade aluminum oxide
- Extremely high abrasion resistance, long service life, negligible contamination factor
- Recommended where silica contamination must be held to an absolute minimum
- Polyurethane-coated body minimizes breakage
Unlined Stainless Steel Jars
Features
Available in 7 standard sizes in Type 304 Stainless Steel, with or without internal lifter bars. Easy to use, fast cleaning. Features wide mouths, curved inside corners.
Lined Steel Grinding Jars
Features
- All sizes have quick-change snap-in liners This feature is especially significant when varied materials are milled and cross contamination must be avoided
- Using a separate liner for each material protects the product, saves clean-up time, reduces number of jars required
- Jars are carbon steel
- Recommended where silica contamination must be held to an absolute minimum
- Buna-N, EPDM, Low-Ash rubber, Neoprene, and Polyurethane liners are available
Note: Cover liners are not snap-in; a different cover is needed for use with each liner
Roalox Alumina-Fortified Grinding Jars
High Alumina Grinding Jars
Unlined Stainless Steel Jars
Lined Steel Grinding Jars
Models
Roalox Alumina-Fortified Grinding Jars
| Jar Size | Jar Volume | Approximate Outside Dimensions (Inches) | Approx. Net Weight (lbs.) | ||||
|---|---|---|---|---|---|---|---|
| Gallons | Liters | Diameter | Jar Height | Overall Height | Mouth Opening | ||
| 000 | 0.1 | 0.3 | 3-3/8 | 4-3/8 | 5-1/2 | 1-1/4 | 1 |
| 00 | 0.3 | 1 | 5-1/2 | 5-1/2 | 6-3/4 | 2-3/4 | 5 |
| 0 | 0.5 | 1.8 | 5-7/8 | 7-1/4 | 8-3/4 | 2-3/4 | 7 |
| 1 | 1.5 | 5.6 | 8-7/8 | 8-1/2 | 11-1/2 | 5-1/4 | 21 |
| 2 | 2.2 | 8.3 | 10-3/8 | 9-1/2 | 12 | 5-1/4 | 23 |
| 3 | 3.3 | 12.4 | 12-3/8 | 10 | 13 | 8 | 35 |
| 4 | 4.6 | 17.6 | 14-5/8 | 10 | 13 | 8 | 46 |
| 6 | 6.6 | 25 | 14-5/8 | 13 | 15 | 8 | 55 |
High Alumina Grinding Jars
Note: Volumes are +/- 10%
| Jar Size | Jar Volume | Approximate Outside Dimensions (Inches) | Approx. Net Weight (lbs.) | ||||
|---|---|---|---|---|---|---|---|
| Gallons | Liters | Diameter | Jar Height | Overall Height | Mouth Opening | ||
| 00 | 0.3 | 1 | 6-3/8 | 5-3/8 | 7 | 3-11/16 | 5.5 |
| 1 | 1.5 | 5.6 | 9-1/2 | 8-1/2 | 12-1/4 | 7-1/8 | 23 |
| 3 | 3.3 | 12.4 | 13 | 10-3/8 | 13-1/2 | 9-3/4 | 45 |
| Typical Chemical Composition | |
|---|---|
| Al2O3 | 88.5% |
| SiO2 | 6.5% |
| MgO | 1.3% |
| Alkalis | <0.2% |
| Fe2O3 | Trace: 0.1% |
| TiO2 | Trace: 0.1% |
| ZrO2 | 2.8% |
Unlined Stainless Steel Jars
Note: Volumes are +/- 5%
| Jar Size | Jar Volume | Approximate Outside Dimensions (Inches) | ||||
|---|---|---|---|---|---|---|
| Gallons | Liters | Diameter | Jar Height | Overall Height | Mouth Opening | |
| 00 | 0.3 | 1 | 6-1/4 | 4-1/4 | 9-1/2 | 3-1/2 |
| 0 | 0.5 | 1.8 | 6-1/4 | 4-3-4 | 6-3/4 | 3-7/8 |
| 1 | 1.3 | 5 | 8-1/4 | 6-3/4 | 9-3/4 | 5-1/2 |
| 2 | 2.3 | 8.7 | 10-1/4 | 7-1/4 | 10-1/4 | 6-1/2 |
| 3 | 3.4 | 12.8 | 10-1/4 | 10-3/4 | 13-1/2 | 6-1/2 |
| 4 | 4.6 | 17.6 | 12-1/4 | 10-1/4 | 13-1/4 | 8 |
| 6 | 6.6 | 25 | 14-1/4 | 10-1/2 | 13-1/2 | 8 |
Lined Stainless Steel Jars
Note: Volumes are +/- 5%
| Jar Size | Jar Volume | Approximate Outside Dimensions (Inches) | Approx. Net Weight (lbs.) | ||||
|---|---|---|---|---|---|---|---|
| Gallons | Liters | Diameter | Jar Height | Overall Height | Mouth Opening | ||
| 00 | 0.3 | 1 | 6-1/4 | 4-1/4 | 6-1/2 | 3-1/2 | 8 |
| 0 | 0.5 | 1.8 | 6-1/4 | 5-1/2 | 7-1/2 | 3-1/2 | 10 |
| 1 | 1.3 | 5 | 8-1/4 | 7-3/4 | 10-7/8 | 5-1/8 | 11 |
| 2 | 2.3 | 8.7 | 10-1/4 | 8-1/2 | 11-5/8 | 6-1/8 | 14 |
